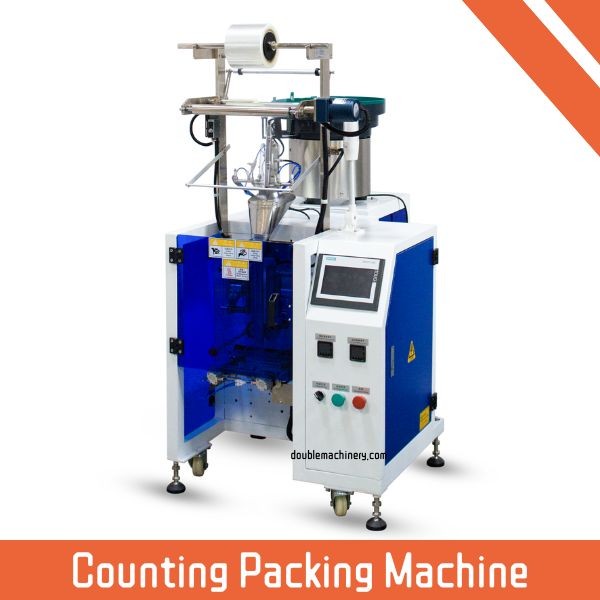

One Vibratory Bowl Screw Packing Machine

Automatic screw packing machine

Screw Packing Machine Application

1. Hardware: Found in hardware stores, construction, and manufacturing for items like screws, nuts, bolts, washers, and similar hardware.

2. Electronic Components: Used in electronics to package components like resistors, capacitors, diodes, and connectors.

3. Pharmaceutical and Medical Devices: Employed in pharmaceutical and medical device manufacturing for small items like tablets, capsules, syringes, vials, and other medical components.

4. Food and Beverages: Beneficial in the food industry for packaging small items like candies, nuts, bolts, and other snacks.

5. Cosmetics and Personal Care Products: Utilized in the cosmetics and personal care industry for packaging items like nail polish bottles, lipsticks, perfume samples, and skincare products.

6. Stationery and Office Supplies: Used in stationery manufacturing for packaging items like paper clips, staples, pushpins, rubber bands, and other small office supplies.

Screw Packing Machine Packing Process

1. Feeding: Products like screws, nails, fasteners, pills, or hardware are stored in a hopper or bulk container. A feeding mechanism, such as a conveyor belt or vibratory feeder, transfers them from storage to the counting area.

2. Counting: In the counting area, various methods, like optical sensors or packing counting, are used. Optical sensors detect products passing a specific point, and the machine counts based on the signals received.

3. Packaging: Sorted products are directed to the packaging station, where packaging material like OPP/CPP, PE composite film is prepared to receive them.

4. Sealing: After placing products in the packaging material, the machine seals the bags securely through heat sealing.

5. Labeling and Printing : If needed, the machine can add product information, barcodes, or other details to the packaging. This step may involve automated application of pre-designed labels or direct printing onto the packaging material.

6. Discharging and Collection: Once packaging is complete, the finished product is discharged from the machine.

Machine Parameters

Machine model DM-320LS

Packing speed 10-60 bags/min

Filling range Max. 500g

Bag length 40-150 mm

Bag width 50-150 mm

Bag type pillow bag, 3/4 side bag, stick bag, gusseted bag

Film material Heat Sealable PE film and laminated Film, such as PE/PET, PE/AL/PET, BOPP, LDPE, etc.

Film thickness 0.05-0.13mm

Film max film width 320 mm

Machine voltage220V, 50Hz/60Hz
